Electric StrikesRim Exit Strike
IDC-10STRIKE RE • RIM EXIT STRIKE • SURFACE MOUNTED ELECTRIC STRIKE

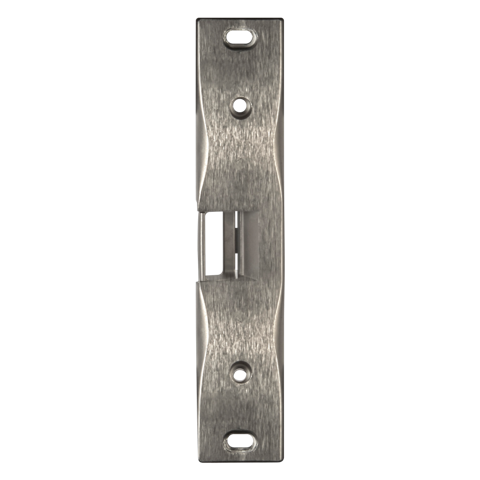

The Rim exit strike is designed specifically for rim exit devices. This strike is completely surface mounted, which eliminates the need to cut into the door frame. The Rim Exit strike has a 3-hour fire rating and has been independently tested for over 4 million cycles of operation.
Description
IDC-10STRIKE RE • RIM EXIT STRIKE • SURFACE MOUNTED ELECTRIC STRIKE
The Rim exit strike is designed specifically for rim exit devices. This strike is completely surface mounted, which eliminates the need to cut into the door frame. The Rim Exit strike has a 3-hour fire rating and has been independently tested for over 4 million cycles of operation.
FEATURES
- IDC-10STRIKE RE
- UL/ULC listed for up to 1500 lbs of static strength
- Conventional keeper design promotes even-load distribution in the event of a forced entry
- Reinforced housing reduces twisting on imperfect frames
- Brushed, US32D, stainless steel provides a complementary finish to existing door hardware.
APPLICATIONS
- Healthcare
- Airports
- Retail / Wholesale
- Education
- Government
- Museums / Galleries
| MODE | VOLTAGE | DUTY | SOUND | AMPS† | OHMS‡ |
|---|---|---|---|---|---|
| Fail Safe | 12 VAC 12 VDC |
Intermittent Continuous |
Buzz Silent |
0.30 0.50 |
22 22 |
| Fail Safe | 24 VAC 24 VDC |
Intermittent Continuous |
Buzz Silent |
0.64 0.24 |
22 89 |
| Fail Safe | 11 VAC 16 VDC |
Intermittent Intermittent |
Buzz Buzz |
0.28 0.50 |
22 22 |
|
Intermittent Duty – Energized less than 1 minute with duty ratio 1:5 Continuous Duty – Energized 1 minute or more |
† Amp ratings are based on maximum current draw at +50ºF and include initial power-up current ‡ Nominal resistance at +77ºF ±7% tolerance |
||||
Specifications are subject to change without prior notice.
