MaglocksMaglocks
UL LISTED ELECTROMAGNETIC LOCKS • ULTIMATE PROTECTION
IDC Maglocks offer the ultimate protection for most access control applications.
- EASY INSTALLATION
- MULTIPLE MODELS
Additional Resources
Description
UL LISTED ELECTROMAGNETIC LOCKS • ULTIMATE PROTECTION
IDC Maglocks offer the ultimate protection for most access control applications.
- EASY INSTALLATION
- MULTIPLE MODELS
Features
-
- Lock status sensor (bond sensor) and visual LED on 600 and 1200 lb models
- Includes adjustable relock time delay (0 – 90 secs)
- Field selectable 12/24V DC
- Installation hardware included for typical applications
- Convenient plug-in wire terminals

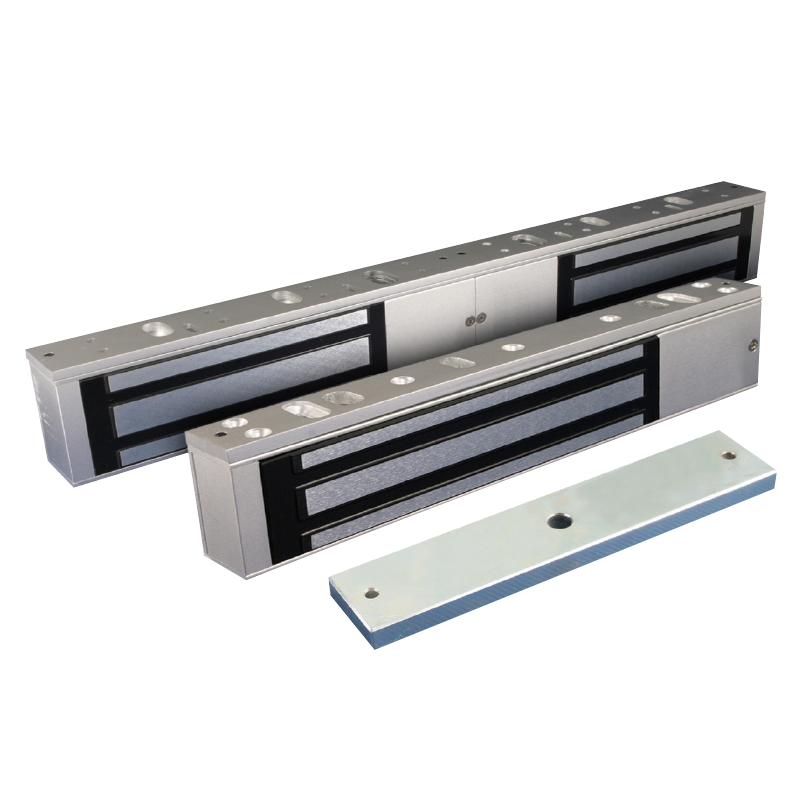

- Available for single doors and double doors without center mullion
| 10MAGLOCK3UL | Single |
| 10MAGLOCK6UL | Double |
| HOLDING FORCE | 600 lbs |
| INPUT VOLTAGE | 12 or 24V DC Note: This product is recommended to be used with a UL-Listed Power Supply |
| CURRENT DRAW | Single 0.50A @ 12V DC 0.25A @ 24V DC Dual 1.00A @ 12 VDC 0.50A @ 24V DC |
| DIMENSIONS | Single 9.84” × 1.85” × 1.02” (250mm × 47mm × 26mm) Dual 19.76” × 1.85” × 1.02” (502mm × 47mm × 26mm) |
| HOLD TIMER | 0-90 sec |
| 10MAGLOCK1UL | Single |
| 10MAGLOCK5UL | Double |
| HOLDING FORCE | 1200 lbs |
| INPUT VOLTAGE | 12 or 24V DC Note: This product is recommended to be used with a UL-Listed Power Supply |
| CURRENT DRAW | Single 0.50A @ 12V DC 0.25A @ 24V DC Dual 1.03A @ 12V DC 0.52A @ 24V DC |
| DIMENSIONS | Single 10.47” × 2.91” × 1.58” (266mm × 74mm × 40mm) Dual 20.94” × 2.91” × 1.58” (532mm × 74mm × 40mm) |
| HOLD TIMER | 0-90 sec |
