Description

DOOR SWEEPS & BRUSH SEALS

FINISH:
Available in Aluminum & Dark Bronze

STOCK LENGTH:
Available in 36” & 48”

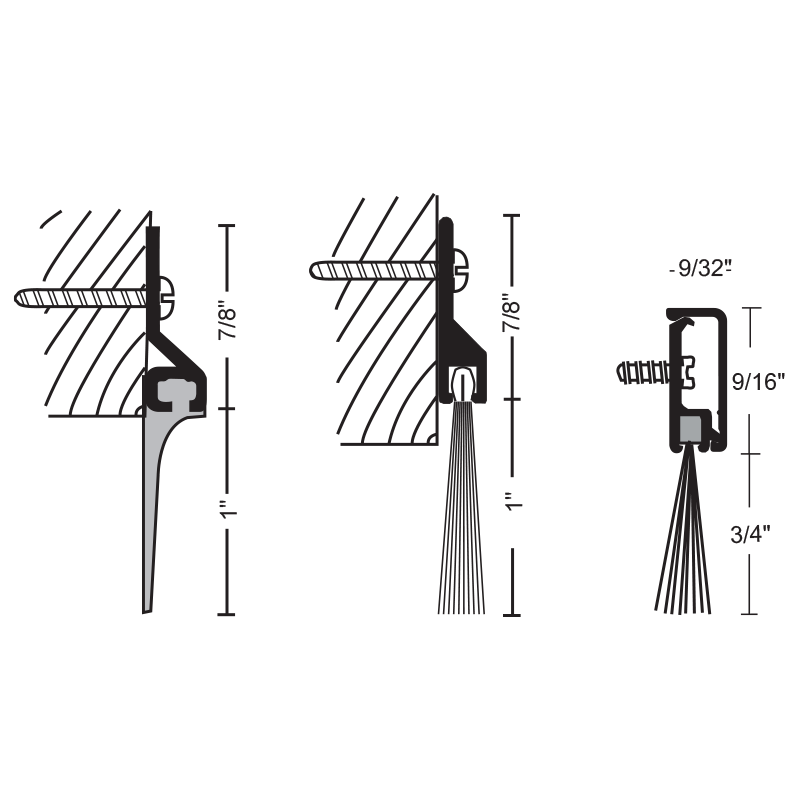

IDC-97V – Vinyl Sweep

• Products are UL10B and CAN4-S104-80M classified, complies with NFPA 80 and NFPA 252 for application to steel fire doors rated up to 3hrs., and wood type fire doors rated up to 1-1/2 hrs.
• Positive Pressure UL10C Classified, Category “J” Complies with IBC UBC7-2 (1997) NFPA 80 & 252
• Smoke & Draft Control Gaskets, Category “H” Complies with IBC7-2 (1997) Part 2, UL1784, NFPA 105 for use on “S” labeled Positive Pressure Steel Fire Doors up to 3 Hours and Wood Type Fire Doors Rated up to 1-1/2 hours
• Air Filtration Tested to ASTM E283, Standard Test Method for Determining Rate of Air Leakage
• #6 x 3/4” Stainless Steel SMS Furnished and Screw Holes are Slotted for Adjustment
• Made in USA

IDC-601 – Nylon Brush Seal

• Synthetic Polymer: Polyamide Bristles
• Excellent Abrasion Resistance, Flexibility and Memory
• Moisture Resistant
• Retains Insecticides Well
• Temperature Range -70F to 160F
• BHMA Certified to ANSI A156.22 Performance Test for Heat, Cold, Air Leakage and Smoke Control in most Common Profiles
• Not Effective Against Water Penetration
• #6 x 3/4” Stainless Steel SMS Furnished and Screw Holes are Slotted for Adjustment
• Made in USA

IDC-673 – Concealed Fastener Nylon Brush Sweeps

• Synthetic Polymer: Polyamide Bristles
• Excellent Abrasion Resistance, Flexibility and Memory
• Moisture Resistant
• Retains Insecticides Well
• Temperature Range -70F to 160F
• BHMA Certified to ANSI A156.22 Performance Test for Heat, Cold, Air Leakage and Smoke Control in most Common Profiles
• Not Effective Against Water Penetration
• #6 x 3/4” Stainless Steel SMS Furnished and Screw Holes are Slotted for Adjustment
• Made in USA
