Rapid ShipD500 Series

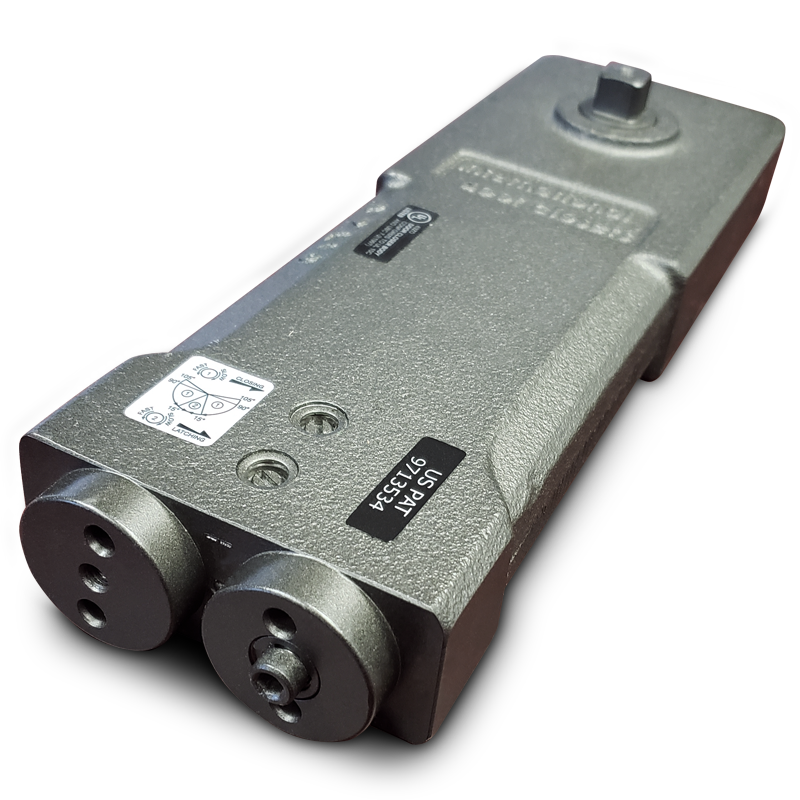

D500 SERIES ADJUSTABLE SPRING POWER – OVERHEAD CONCEALED CLOSER
Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable ‘S’ side loading, “A” end loading, “K” end loading or “PT” end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners.
10 Year Warranty
Description
D300 SERIES ADJUSTABLE SPRING POWER – OVERHEAD CONCEALED CLOSER FEATURES:
- I.D.C. provides LEAK-FREE guaranteed performance under the most demanding conditions.
- Steel spring cap is now on top of closer body utilizing a new high performance O-Ring and epoxy sealed threads for double protection.
- New automotive type heavy duty spindle seal replacing old standard O-ring technology.
- Adjustment valves now with two high performance O-rings for double protection.
- Steel end caps incorporating new high performance O-rings and also epoxy sealed threads for double protection.
- Barrier Free Operation to comply with Federal Accessibility Standards (ADA): complying with ANSI A117.1 (4.13.11) available for center pivoted applications.
- Built-in positive back stop and hold-open positions available:
- 105° Back Stop with Hold-Open
- 105° Back Stop – no Hold-Open
- 90° Back Stop with Hold-Open
- 90° Back Stop – no Hold-Open
- ADA closer with Adjustable Spring Power for a range of sizes from 5 lb. to 8.5 lb. LIGHT, MEDIUM & HEAVY. Spring Tension, fully adjustable after installation
Center Hung Doors: Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable ‘S’ side loading, “A” end loading, “K” end loading or “PT” end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners.
“S” type side loading, “A” type, “K” type, or “PT” type end loading top arms are available for center pivoted applications.
“A” type, “K” type or “PT” type end loading and “JO” or “VO” type offset arms are optional, but must be specified.
“G” and “GE” type pivot sets are available, but must be ordered separately.
Offset Hung Doors: Complete units for offset pivoted or butt hinged aluminum doors and frames are furnished with a “JO” or “VO” type offset arm (may not meet handicap force requirements) and 3010-FS anchor set with all fasteners.
3010-DP dual purpose radial ball bearing bottom pivot set is standard for floor or threshold center pivoted installation. Optional 3010-GE bottom pivot set
NOTE:
Doors of varying sizes, or of excessive weight, or doors subject to severe wind or draft conditions, or abusive usage, refer to Series D200 Overhead Concealed Closers.
SPECIFY:
Closer Model Number and Type of Top Arm, Anchor and/or Pivot Set.
SPECIFY FINISH:
For 3010-JO or 3020-VO Arms
AL - Satin Aluminum
DU - Storefront Bronze
| Type | Model No. |
|---|---|
| 105° Back Stop with Hold-Open | D510 |
| 105° Back Stop - no Hold-Open | D511 |
| 90° Back Stop with Hold-Open | D512 |
| 90° Back Stop - no Hold·Open | D513 |
| 3/4” SPINDLE | Model No. |
|---|---|
| 105° Back Stop with Hold-Open | D510-20-A-DP |
| 105° Back Stop - no Hold-Open | D511-20-A-DP |
