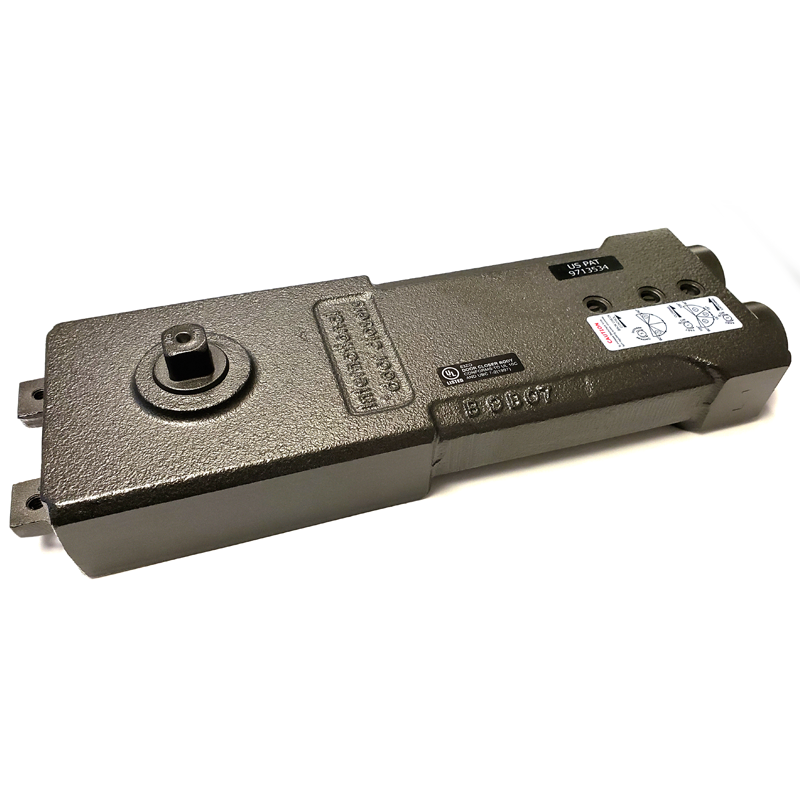

D200 SERIES OVERHEAD CONCEALED CLOSER

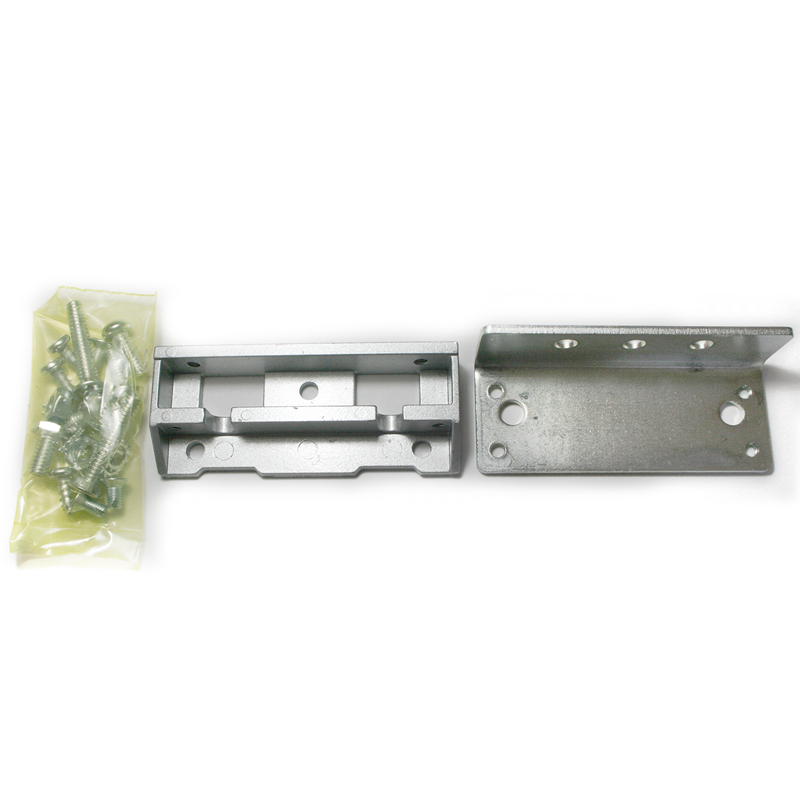

Complete units for aluminum doors and frames are furnished with top arm assembly (adjustable ‘S’ side loading, “A” end loading, “K” end loading or “PT” end loading), adjustable dual purpose 3010-DP bottom pivot set for floor or threshold mounting (side or end loading) and 3010-FS anchor set with all fasteners.
5 Year Warranty
Additional Resources
Description
D200 SERIES OVERHEAD CONCEALED CLOSER FEATURES:
- I.D.C. provides LEAK-FREE guaranteed performance under the most demanding conditions.

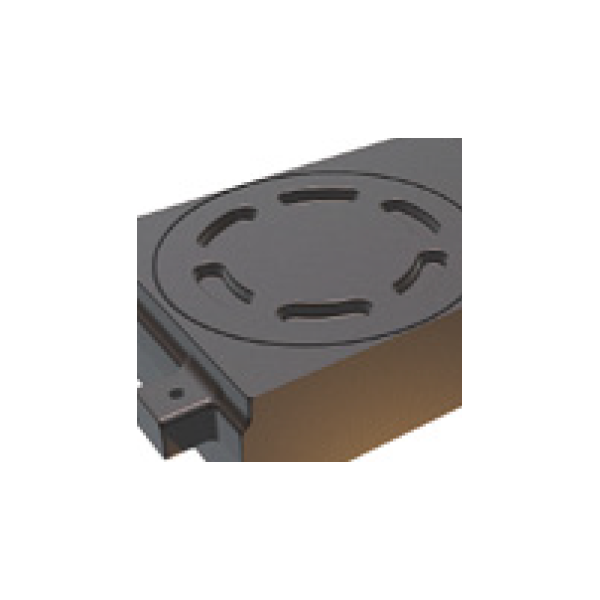

- Steel spring cap is now on top of closer body utilizing a new high performance O-Ring and epoxy sealed threads for double protection.

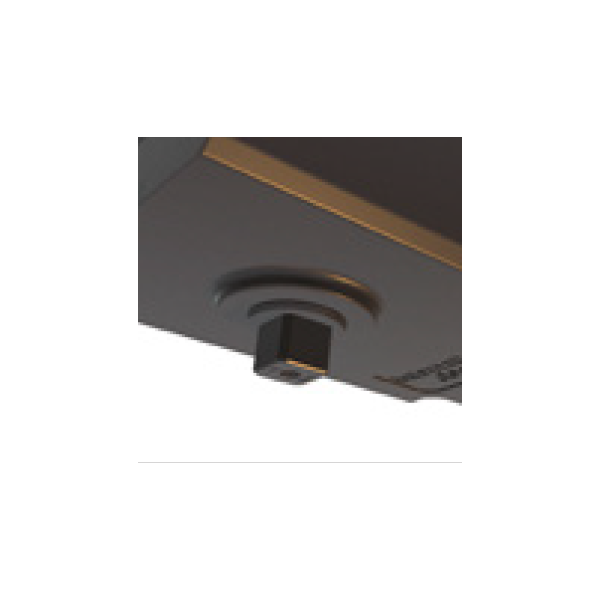

- New automotive type heavy duty spindle seal replacing old standard O-ring technology.
- All three adjustment valves now with two high performance O-rings for double protection.

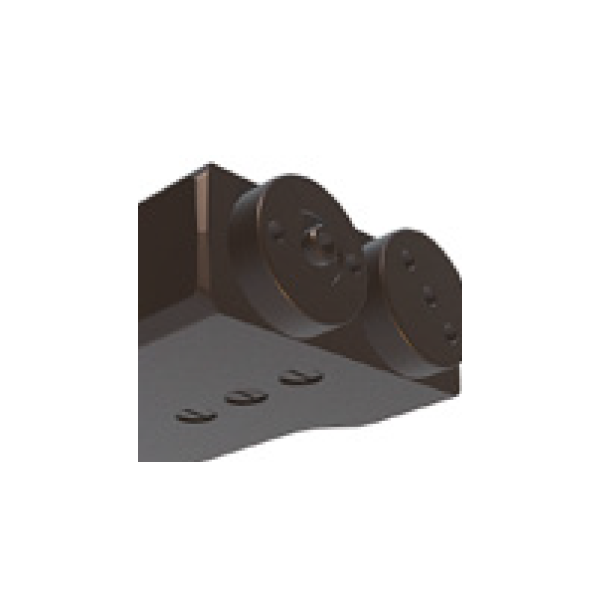

- Steel end caps incorporating new high performance O-rings and also epoxy sealed threads for double protection.
- Adjustable back check after 80° to prevent the door from slamming open.
- CENTER HUNG DOORS: Double or Single Acting (Door stop applied to frame renders unit Single Acting). Adjustable “S” type side loading or “A” type, ”K” type and “PT” type end loading top arms are available for center pivoted applications.
- Built-in positive back stop and hold-open positions available:
• 105° Back Stop with Hold-Open
• 105° Back Stop – no Hold-Ope
• 90° Back Stop with Hold-Open
• 90° Back Stop – no Hold-Open - ADA spring tensions available for use on center pivoted applications:
- 5 lb. opening force (Interior door)
- 8-1/2 lb. opening force (Exterior door)
- Standard spring tensions available:
• LIGHT, MEDIUM & HEAVY - Three control valves: Closing speed, latching speed and back check, fully adjustable after installation.
- Fits in an aluminum header or transom bar as small as 1-3/4” x 4”.
- Positive centering for alignment and to hold door closed against any normal wind or draft.
- Stable hydraulic door check fluid for any climatic operation and constant lubrication.
| Door Size | From 36” to 48” X 96” | Spring Tension | ADA 5Ib. (INTERIOR) |
|---|
| Type | Model With ‘S’ ‘A’ ‘K’ or ‘PT’ Arm | Model With ‘JO’ or ‘VO’ Offset Arm |
|---|---|---|
| 105° Back Stop with Hold-Open | D200 | NA |
| 105° Back Stop - no Hold-Open | D201 | NA |
| 90° Back Stop with Hold-Open | D202 | NA |
| 90° Back Stop - no Hold·Open | D203 | NA |
| Door Size | From 36” to 48” X 96” | Spring Tension | ADA 5Ib. (INTERIOR) |
|---|
| Type | Model With ‘S’ ‘A’ ‘K’ or ‘PT’ Arm | Model With ‘JO’ or ‘VO’ Offset Arm |
|---|---|---|
| 105° Back Stop with Hold-Open | D200 | NA |
| 105° Back Stop - no Hold-Open | D201 | NA |
| 90° Back Stop with Hold-Open | D202 | NA |
| 90° Back Stop - no Hold·Open | D203 | NA |
| Door Size | From 36” to 48” X 96” | Spring Tension | ADA 5Ib. (INTERIOR) |
|---|
| Type | Model With ‘S’ ‘A’ ‘K’ or ‘PT’ Arm | Model With ‘JO’ or ‘VO’ Offset Arm |
|---|---|---|
| 105° Back Stop with Hold-Open | D200 | NA |
| 105° Back Stop - no Hold-Open | D201 | NA |
| 90° Back Stop with Hold-Open | D202 | NA |
| 90° Back Stop - no Hold·Open | D203 | NA |
| Door Size | From 36” to 48” X 96” | Spring Tension | ADA 5Ib. (INTERIOR) |
|---|
| Type | Model With ‘S’ ‘A’ ‘K’ or ‘PT’ Arm | Model With ‘JO’ or ‘VO’ Offset Arm |
|---|---|---|
| 105° Back Stop with Hold-Open | D200 | NA |
| 105° Back Stop - no Hold-Open | D201 | NA |
| 90° Back Stop with Hold-Open | D202 | NA |
| 90° Back Stop - no Hold·Open | D203 | NA |
Note:
Doors of sizes over the schedule, or of excessive weight, or doors subject to severe wind or draft conditions, or abusive usage, require the next stronger model closer.
Specify:
Closer Model Number and Type of Top Arm, Anchor and/or Pivot Set.
Specify Finish:
- For 3010-JO or 3020-VO Arms
- AL - Satin Aluminum
- DU - Storefront Bronze
Warranty:
- 5 Year Warranty
