Description

MORTISE & RIM CYLINDERS • CYLINDER GUARD

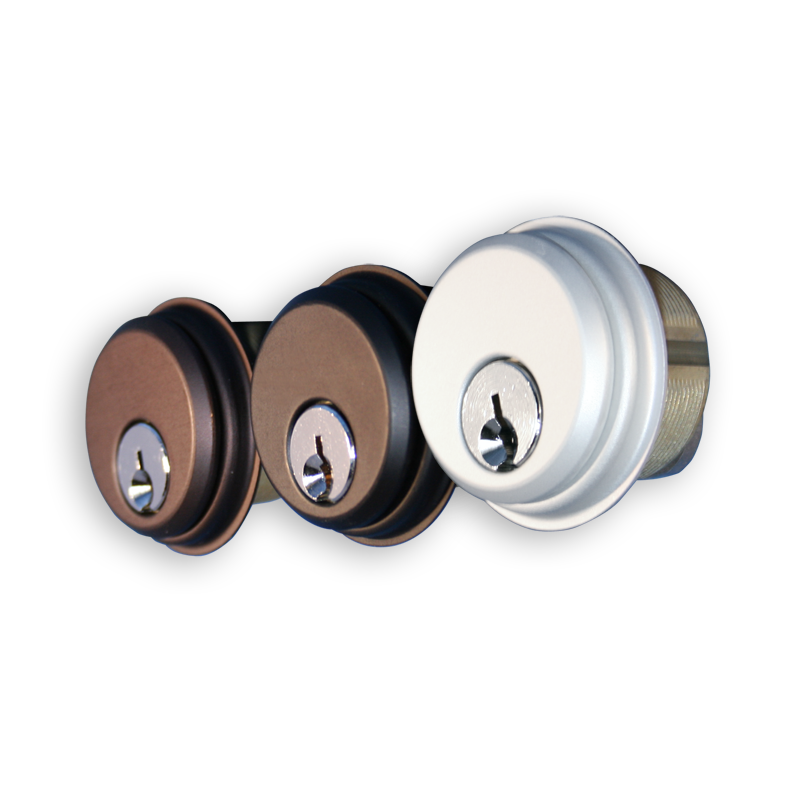

CZ-1001 (ZINC) MORTISE KEY CYLINDER

• 1” Length 5 pin Cylinder 1-5/32” diameter
• AR MS-Type cam
• Keyway available:
  Schlage “C”, Yale “8”
• Core face and Key US 26D
• Cylinder ring 3/16” standard, 5/32” and 7/32” optional

Finishes Available: Specify : Keyway

• AL – Anodized Satin Aluminum
• BK – Anodized Black
• DU – Anodized Bronze

Specify: Cylinder ring type KA-2 or KA-(quantity) Finish

DC-2001 (ZINC) MORTISE DUMMY CYLINDER

• 7/8” Length Cylinder 1-5/32” diameter
• No Keyway or cam
• Cylinder ring 3/16” standard, 5/32” and 7/32” optional

Finishes Available: Specify: Cylinder ring type

• AL – Anodized Satin Aluminum Finish
• BK – Anodized Black
• DU – Anodized Bronze

Specify: Cylinder ring type

RZ-1003 (ZINC) RIM CYLINDER

• 5 pin Cylinder
• Core face and Key US 26D
• Schlage “C” Keyway
• Low profile Cylinder ring and adaptor plate standard
• 1-7/8” Break-away screws and 1-1/4” Break-away Spindle standard

Finishes Available:

• AL – Anodized Satin Aluminum
• BK – Anodized Black
• DU – Anodized Bronze

Specify: Finish

TZ-3001 (ZINC) MORTISE THUMBTURN CYLINDER

• 1” Length Cylinder 1-5/32” diameter
• AR MS-Type cam
• Thumbturn US 26D
• Cylinder ring 3/16” standard, 5/32” and 7/32” optional

Finishes Available:

• AL – Anodized Satin Aluminum
• BK – Anodized Black
• DU- Anodized Bronze

Specify: Cylinder ring type

CG-4043 CYLINDER GUARD

• 1” Length Cylinder 1-5/32” diameter
• AR MS-Type cam
• Thumbturn US 26D
• Cylinder ring 3/16” standard, 5/32” and 7/32” optional

Finishes Available:

• AL – Anodized Satin Aluminum
• BK – Anodized Black
• DU- Anodized Bronze

Specify: Cylinder ring type

CG-4043 CYLINDER GUARD

• Hardened steel security ring
• Free-spinning beveled collar
• For standard face 5 pin Mortise key cylinder
• For use on Aluminum
• Furnished with retaining clip and two spacers

Finishes Available:

• AL – Baked Satin Aluminum Paint
• BK – Baked Black Paint
• DU- Baked Storefront Bronze Paint

Specify: Finish
