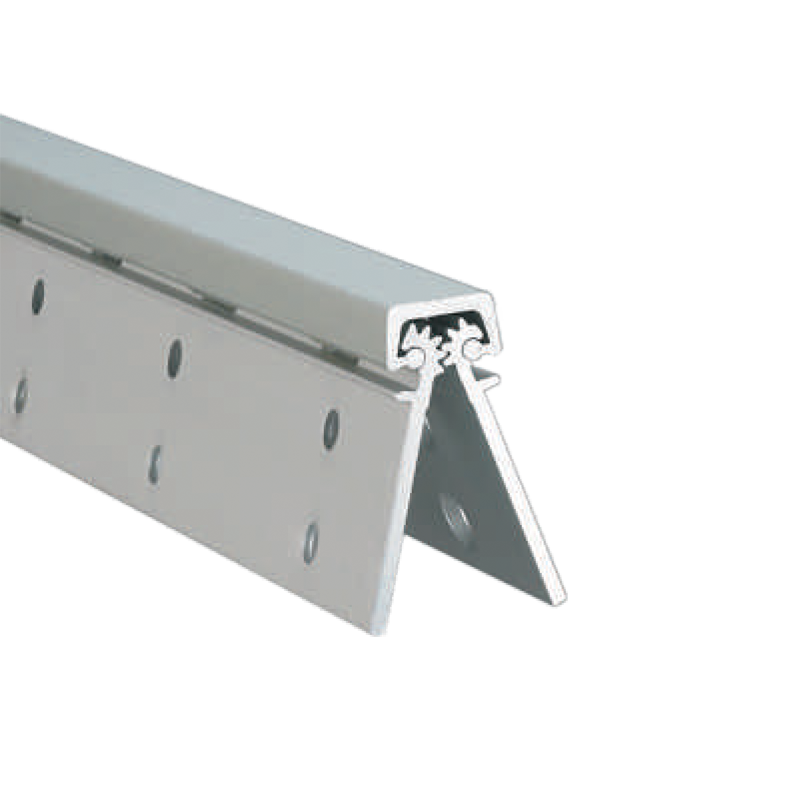

Rapid ShipAluminum Half Surface Geared Hinges

  • Any Door Material
  • Heavy Duty for high frequency 1 3/4” doors or heavy medium frequency doors up to 450lbs.
  • 617HS (Heavy Duty)
Additional Resources
Clear
    Reset options

Description

HALF SURFACE HINGES

  • Any Door Material
  • Heavy Duty for high frequency 1 3/4” doors or heavy medium frequency doors up to 450lbs.
  • 617HS (Heavy Duty)
MODEL LENGTH SCREW COUNT CLEARANCE
C (Clear Anodized) D (Duro Anodized) IN CM DOOR JAMB
617HSC-83 617HSD-83 83 210.8 19 19 5/16” (8mm) hinge side plus standard lockside clearance
617HSC-95 617HSD-95 95 241.3 20 20
617HSC-120 617HSD-120 120 304.8 26 26
*Note: First 3 numbers = (Product #), FS = (Half Surface), C or D = (Finish), 83, 95 & 120 = (Length)
FASTENERS:
(Self-Tapping Screws)		 FRAME PORTION

  • All fasteners as No. 12-24 x 1/16” Type C, FHUC – Heavy Duty Hinges – 10 required for each leaf

DOOR PORTION

  • Thrubolt 1/4-20 x 1 5/8” PCH – Heavy Duty Hinges – 6 required for each leaf
  • Shoulder bolt 1/4 – 20 x 1”PCH – Heavy Duty Hinges – 6 required
  • Pan Head Self Drilling No. 12 x 3/4” – Heavy Duty Hinges – 4 required
LENGTH OPTIONS: 83”, 95” & 120”
DOOR REINFORCEMENT:
  • None needed
FRAME REINFORCEMENT:
  • None needed to 200 lbs
  • Use 16 gauge channel over 200 lbs
FIRE RATING: Up to 3 Hours
SPECIAL FEATURES:
    • For new construction
    • For renovation with new door and / or frames
    • No mortising of doors or frames required
    • Will cover hinge cut outs in frames
    • Flush mount no inset
    • Frame and door leaf alignment ribs for proper hinge location
STANDARD FINISHES:

  • C (Clear Anodized Aluminum), D (Duro Anodized Aluminum)
SPECIAL ORDER FINISHES:

  • PW (Painted White), G (Gold Anodized Aluminum), BL (Black Anodized Aluminum)
