Surface Closers9000-TP Series

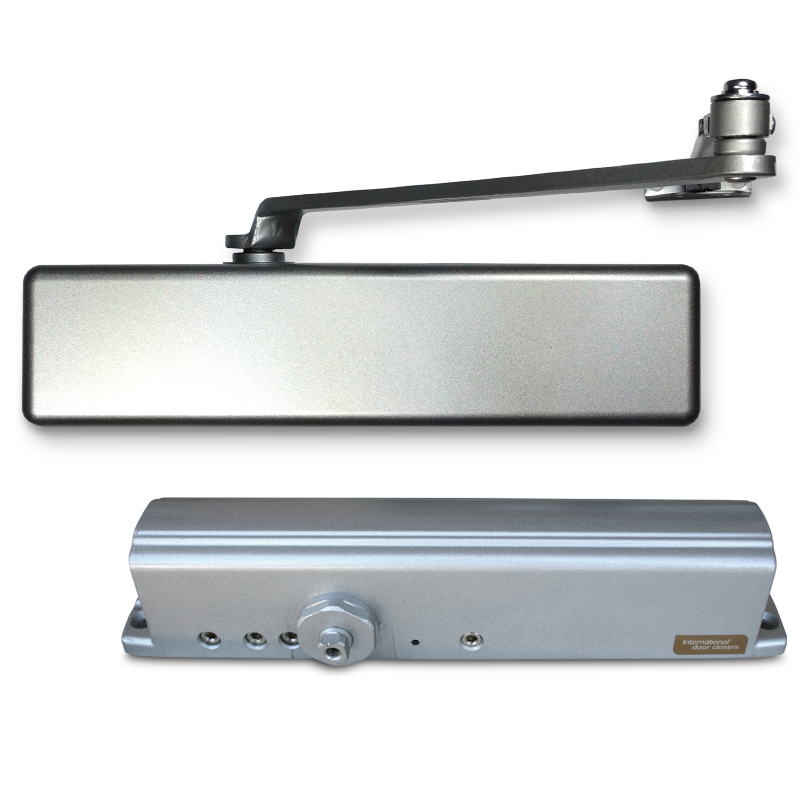

9000-TP Series – Adjustable Surface Closer – Grade 1 • Fire Rated – ADA Handicap
10 Year Warranty
Additional Resources
Description
9000-TP Series – Adjustable Surface Closer – Grade 1 • Fire Rated – ADA Handicap
FEATURES:
- ANSI A 156.4 Grade 1 Certified
- Model 9001-TP: Adjustable spring power (1-6) Opening Force with adjustable back check and delayed action controlled by a separate regulating valve
- Model 9003-TP: Interior ADA applications tri-packed with parallel bracket & dress cover. Barrier Free Adjustable Spring Power (1-4)
- Furnished with a high impact molded PVC Dress Cover (door closer body casting is finished for use without the dress cover)
- ADA (Handicap) multi-sized closer with adjustable Spring Power for a range of sizes adjustable after installation.
- Two Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.

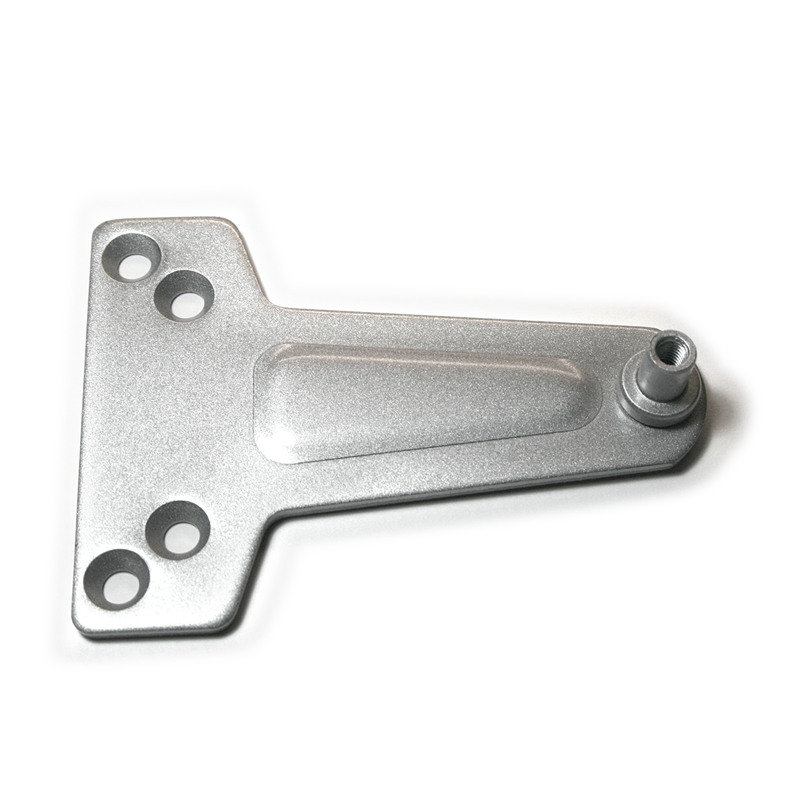

- Universal Application: Non handed for standard, top jamb or parallel arm installation (parallel arm bracket included).
- Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.

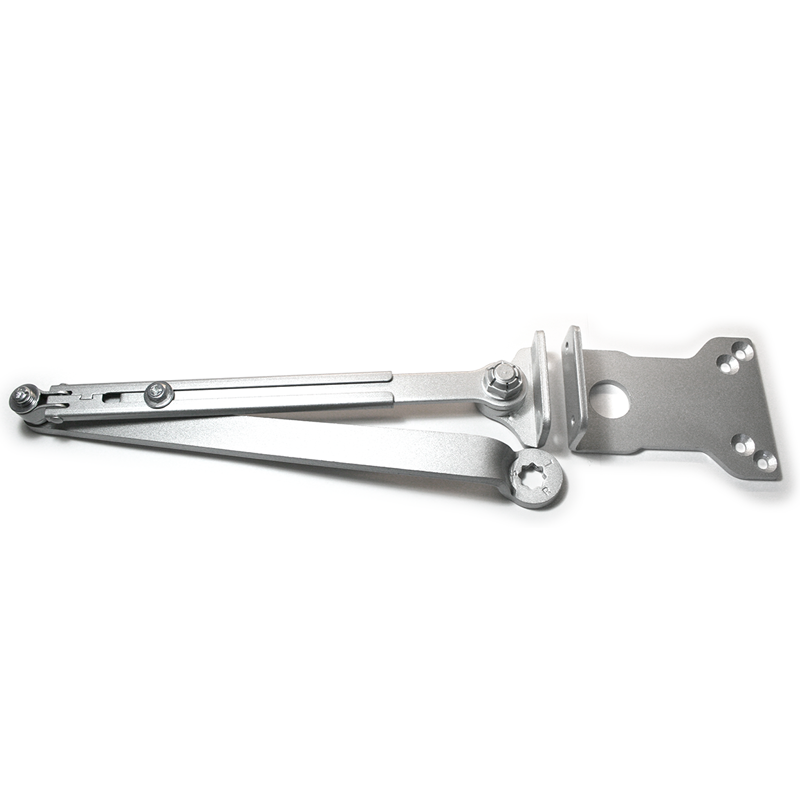

- Optional hold-open arms available.
- Hold-open arms are adjustable for holding from 90° to 180°
FINISHES
- AL – Aluminum
- DU – Storefront Bronze
10 YEAR WARRANTY
| Description | NO DRESS COVER |
|---|---|
| 9001-TP | |
| A. Length of Closer Body | 11 7/8” |
| B. Horizontal Mounting Holes | 11 1/8” |
| C. Vertical Mounting Holes | 3/4” |
| D. Overall Height | 4 9/16” |
| E. Top of Door to Bottom of Closer | 3 5/16” |
| F. Closer Body Height | 2 13/16” |
| G. Projection from Door | 2 9/16” |
Standard
Top Jamb
Parallel Arm
TYPICAL INSTALLATIONS (REGULAR ARMS SHOWN) Hold-Open Arms are similar
| Model No. | Type |
|---|---|
| Back-Check / Delayed Action | |
| 9001-TP | Regular Arm |
