Description

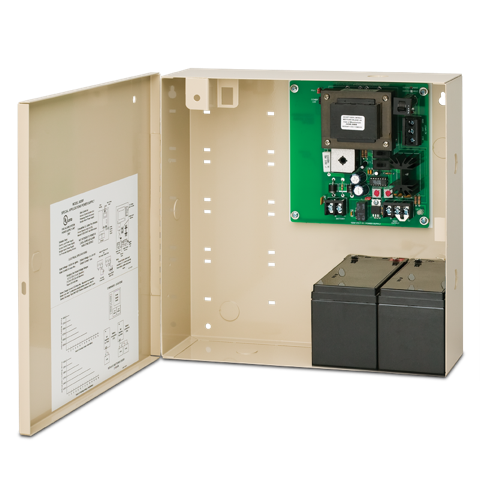

602RF 1 AMP . MODULAR ACCESS CONTROL POWER SUPPLY

• Field Selectable 12VDC or 24VDC Output – Standard
• Dual 12VDC and 24VDC Output – Optional
• California Compliant Manual Release Optional

All IDC power supplies are equipped with a high performance transformer and highly reliable electronic components. Filtering and output voltage regulation provide protection and ensure the longevity of all system components. With the addition of IDC programmable controllers or relay modules, the user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment.

Class 2 Outputs

To simplify installations that do not require conduit, a Class 2 output is standard and a 6-foot power cord is optional for the 115VAC input where permitted by code.

Modular Design

Door control relay modules are available to meet virtually any application need. All wiring for lock hardware, access controls remote control and monitoring is terminated at one central location. Installation and troubleshooting is simplified.

Modules may be factory installed or ordered separately for field installation as needed. All modules are individually fused for protection of multiple station systems.

Model

• 602RFL
  • 1 Amp power supply only
  • Less box
• 602RF
  • 1 Amp power supply
  • 12″ x 12″ x 4″ cabinet

Options

• PC
  • Power cord, 6 FT
• KL
  • Key lock cover
• MR-1
  • Push switch for manual reset of emergency release and AC power loss. California state compliant (CSFM). Consult your local Authority Having Jurisdiction (AHJ) for reset requirements.
• PS-1
  • System on-off push switch mounted inside cabinet
• PS-1A
  • System on-off push switch mounted on outside cover
• 230VAC
  • 230VAC input (Not UL)
• 14-2
  • 7 day skip a day timer
