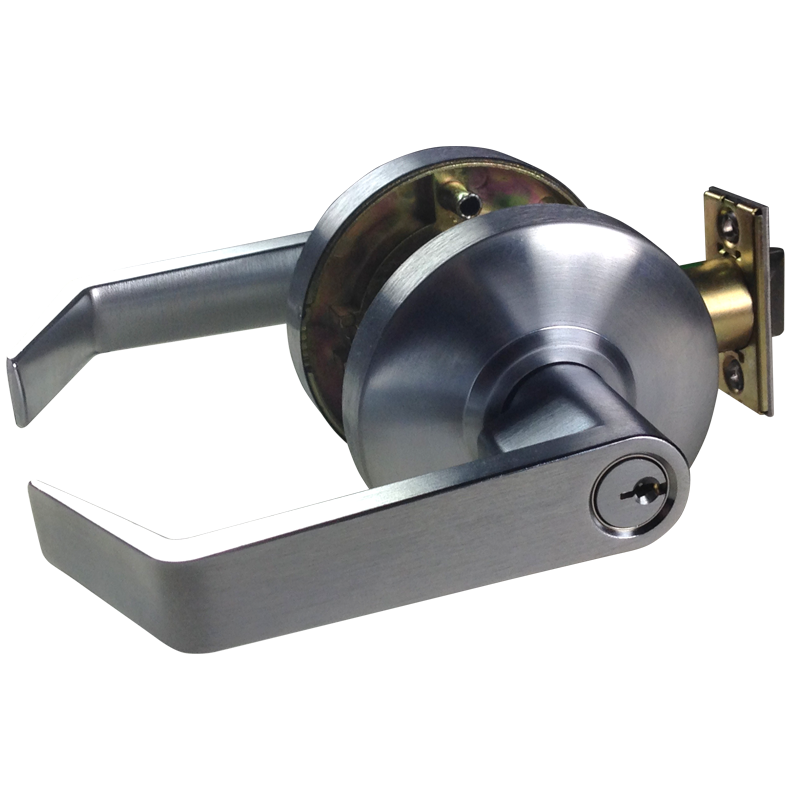

Locksets5000L Cylindrical Locks (Grade 1)
5000L SERIES GRADE 1 CYLINDRICAL LOCKS • CYLINDRICAL LOCKSETS
IDC locksets are designed for commercial, industrial and institutional use, where dependable operation and longevity is required along with high resistance to vandalism and abuse. Applications include office buildings, government centers, factories, schools and hospitals and more.
Description
5000L SERIES GRADE 1 CYLINDRICAL LOCKS • CYLINDRICAL LOCKSETS
IDC locksets are designed for commercial, industrial and institutional use, where dependable operation and longevity is required along with high resistance to vandalism and abuse. Applications include office buildings, government centers, factories, schools and hospitals and more.
Internal clutch provides vandal resistance by permitting lever rotation without retracting latch when locked.
Independent heavy duty springs provide effective lever return and support.
| Design & Performance Features | |
|---|---|
| Design | Strong stable design with anti-twisting capacity, dependable operation and longevity |
| Clutch | Internal clutch provides vandal resistance by permitting lever rotation without retracting latch when locked. |
| Handing | All M7200 series locksets are non-handed |
| Backset | 2-3/4″ backset standard. 2-3/8″ (60mm) backset or 5” (127mm) backset extension optional |
| Faceplate | Brass, bronze or stainless steel. 1-1/8″x 2-1/4″ (29mm x 57mm) square corner, beveled. |
| Chassis | Heavy gauge steel chassis, corrosion resistant zinc dichromate |
| Latch bolt and Roller Retractor | Stainless Steel, (13.7lbs) throw, deadlocking on keyed and exterior functions. The retractor is equipped with a roller to enhance reliability and long life |
| Levers | Durable cast zinc based levers |
| Rose | Brass or stainless steel, 3-9/16″ (90mm) diameter rose |
| Independent Lever Springs | A durable torsion spring on each side provides positive lever return and prevents lever sagging |
| Strike | ANSI curved lip strike, 1 ¼” x 4 7/8″ x 1-3/8″lip to center standard |
| Door Thickness, field adjustable | Door Thickness, field adjustable Field adjustable for 1-3/8” – 1-3/4” (35mm – 45mm) thick door |
| Through Bolt Mounted | Trim assembly is through bolt mounted for superior strength. |
| Cylinders and Keys | 6 pin type keyway with 2 brass keys standard. |
| Small Format Interchangeable Cores | Interchangeable Core will accept compatible 6 or 7 pin cores with BEST. |
ANSI / BHMA
ANSI/BHMA A156.2 Grade 1 strength and operational requirements
ANSI A250.13 severe windstorm compliant
UL Listed for 3 Hr ‘A’ label or lesser fire rated single doors, 4’ x 8’
UL10C/UBC-2 positive pressure compliant
UL10B neutral pressure compliant
ADA
ADA/ANSI A117.1 accessibility code compliant
California State Reference Code (CSFM)
All levers, G and E, with less than ½” (13mm) return comply with California Fire Safety
Codes (Formerly Title 19, California State Fire Marshal)
