Surface Closers44CI SERIES

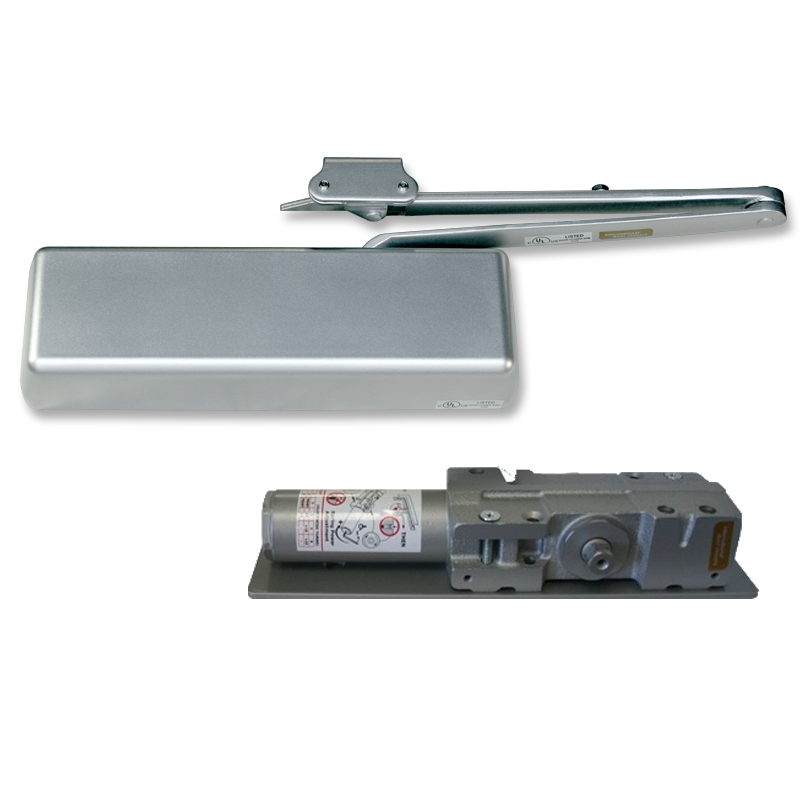

44CI SERIES ADJUSTABLE SPRING POWER SURFACE APPLIED GRADE 1 CLOSER
Application for HIGH TRAFFIC Doors, Cast Iron Body; Forged Steel Arm, Double Heat Treated Steel Pinion, All Weather Fluid, Non-Handed
10 Year Warranty
Additional Resources
Description
44CI SERIES ADJUSTABLE SPRING POWER SURFACE APPLIED GRADE 1 CLOSER FEATURES:
- Application for HIGH TRAFFIC Doors
- Cast Iron Body; Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- Non-Sized Adjustable 1 Through 6; Standard with Back Check
- Universal Application for Regular Arm, Top Jamb, or Parallel Arm Mounting
- Standard Plastic Cover – Non Handed
- Hold-open arms are adjustable for holding from 85° to 180°.
- 10 year Warranty
Options Available

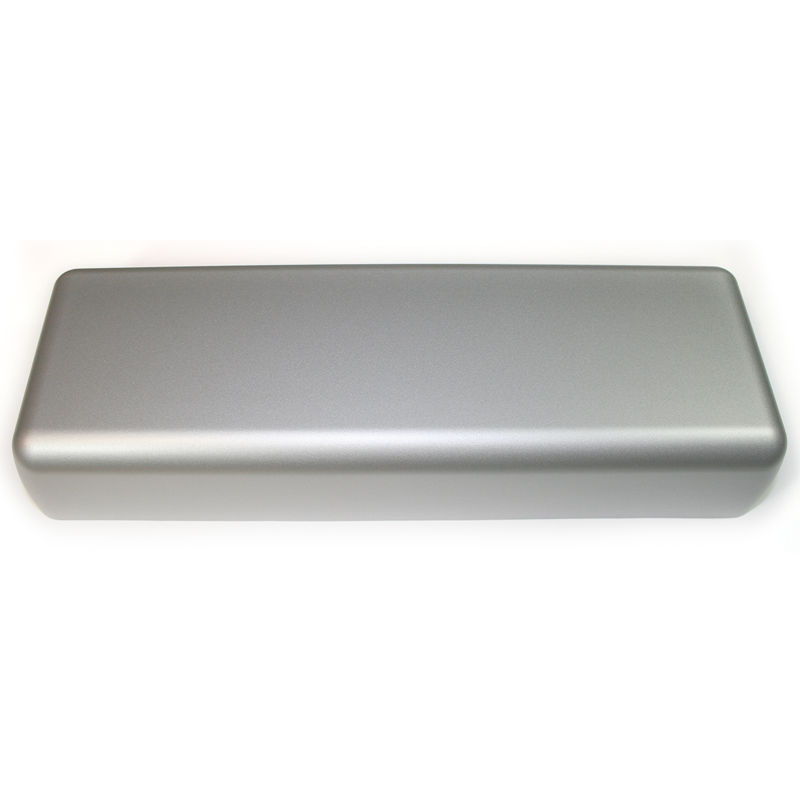

- Metal Cover

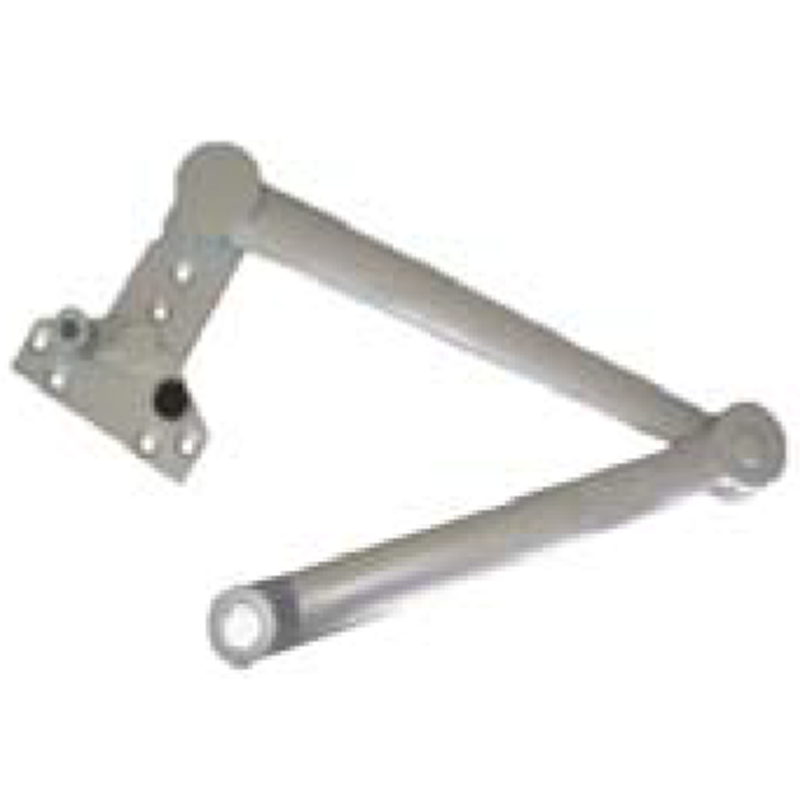

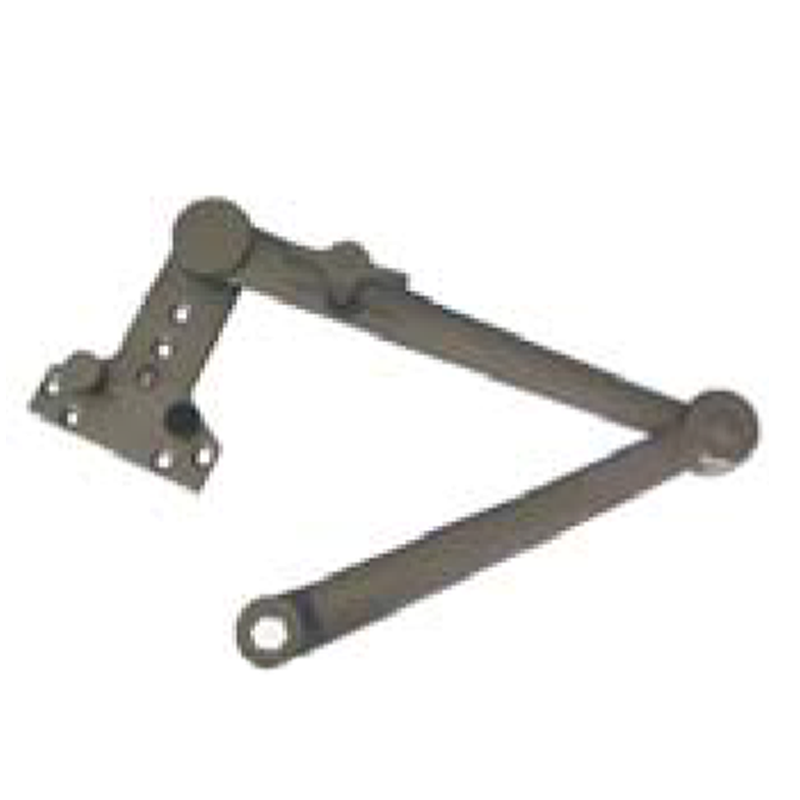

- Heavy Duty Arm (EDA)

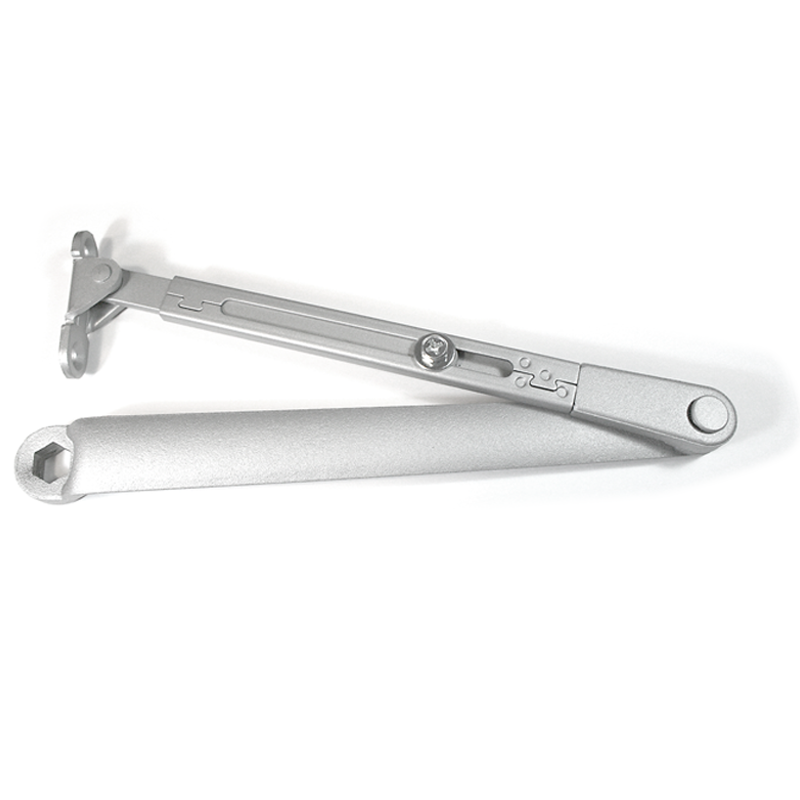

- Hold-Open arm
- Stop Only Arm
- Friction Hold Open Arm
Finishes
- AL – Aluminum
- DU – Storefront Bronze
(Other finishes available by Special Order)
| Description | Dimensions |
|---|---|
| A. Length of Closer Body (With Cover) | 12-1/4” |
| B. Horizontal Mounting Holes | SEE DRAWING |
| C. Vertical Mounting Holes | 2-1/4” |
| D. Overall Height | 4-7/8” |
| E. Top of Door to Bottom of Closer | 3-11/16” |
| F. Closer Body Height | 3-1/2” |
| G. Projection from Door | 2-1/4” |
Regular Arm (Pull Side)
Permits 120° maximum opening

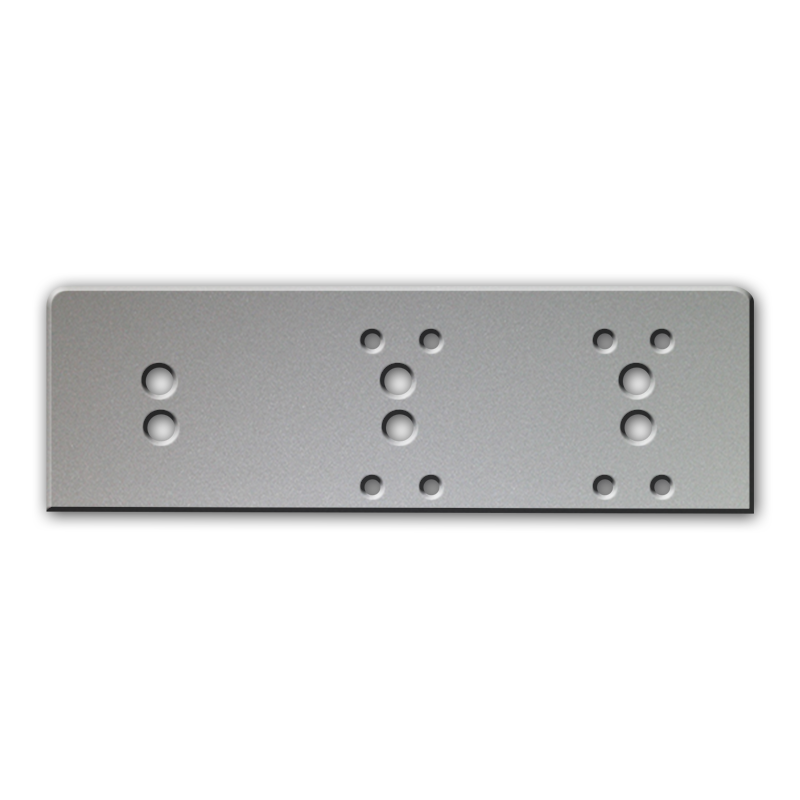

Top Jamb (Push Side)
Permits 120° maximum opening

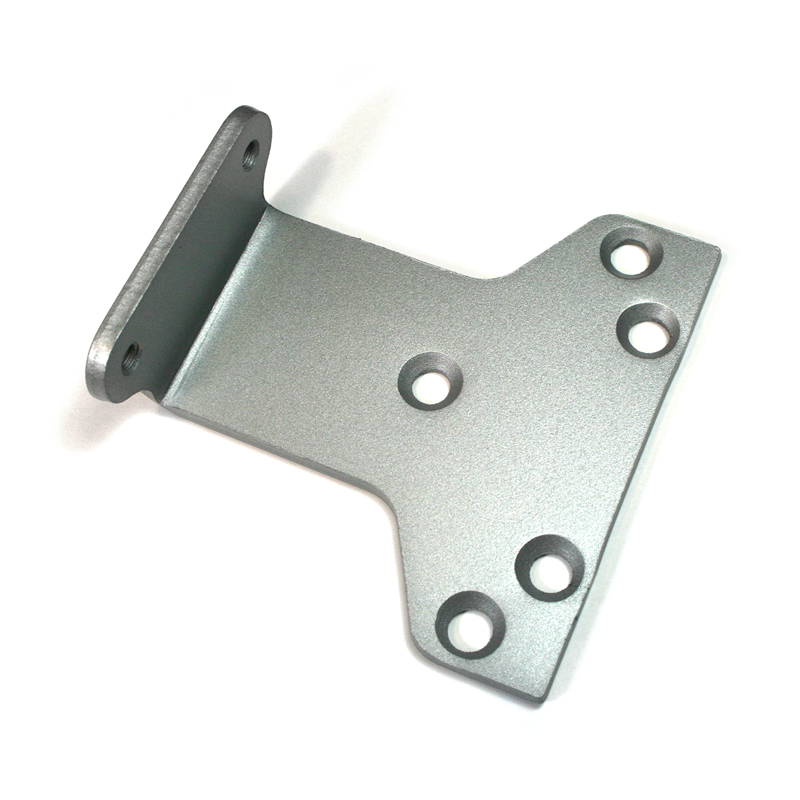

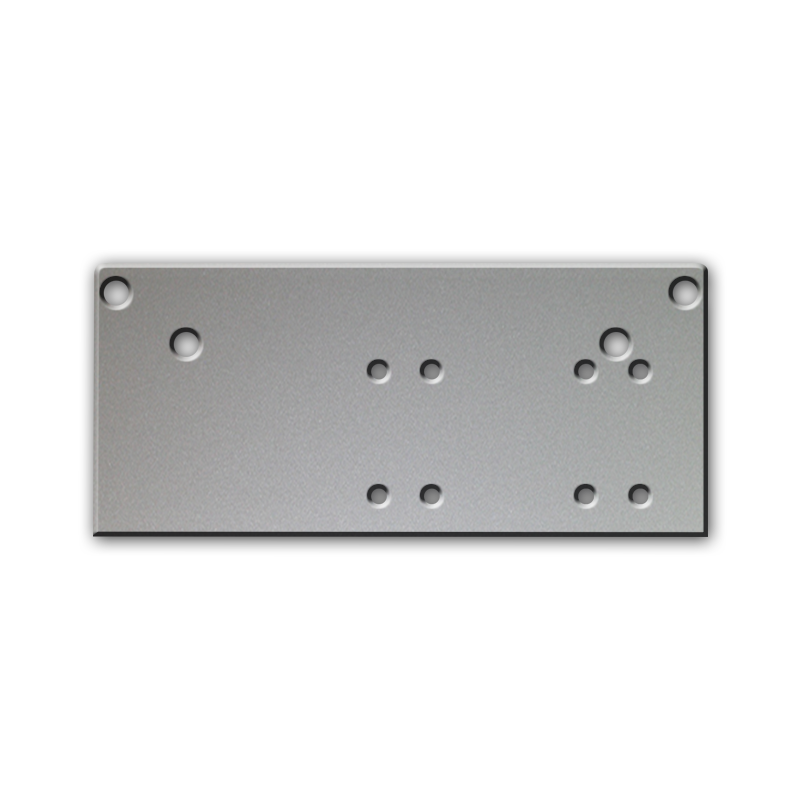

Parallel Arm (Push Side)
Permits 180° maximum opening
