Surface Closers1800 Series

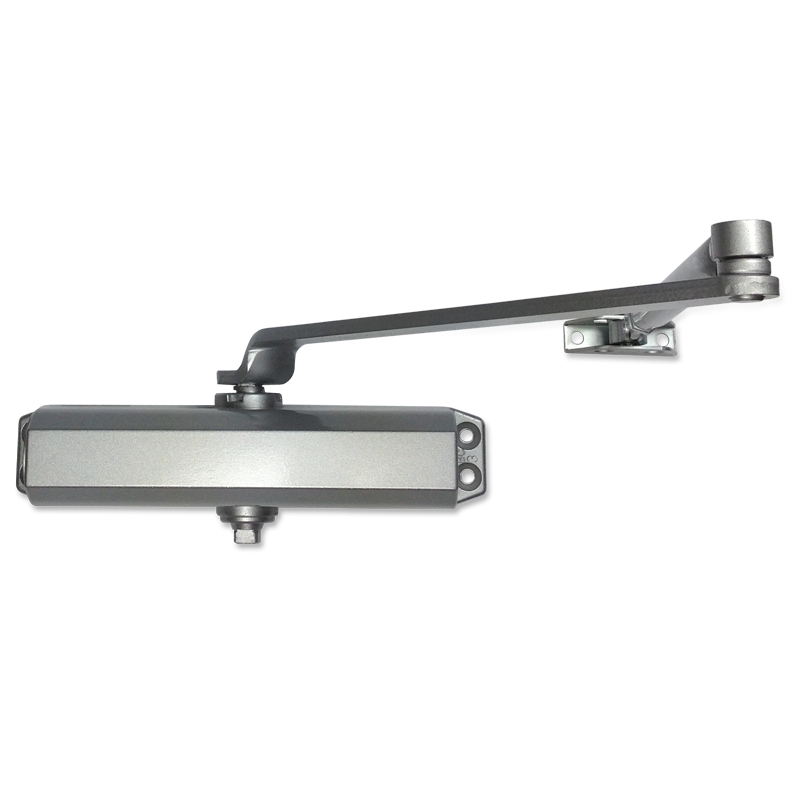

1800 SERIES FIXED SPRING POWER SURFACE APPLIED CLOSER
Narrow design permits installation on most glass and aluminum doors without adapters
10 Year Warranty
Additional Resources
Description
1800 SERIES FIXED SPRING POWER SURFACE APPLIED CLOSER FEATURES:
- Narrow design permits installation on most glass and aluminum doors without adapters
- Standard application for regular arm and Top Jamb installation; parallel arm installation

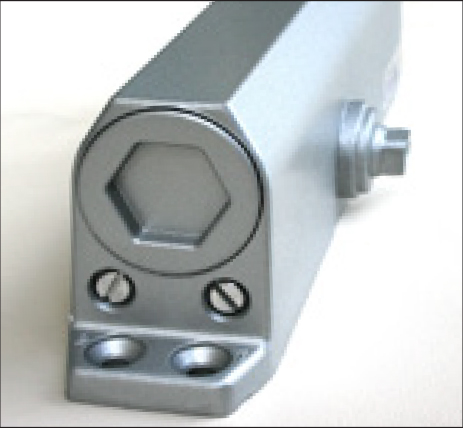

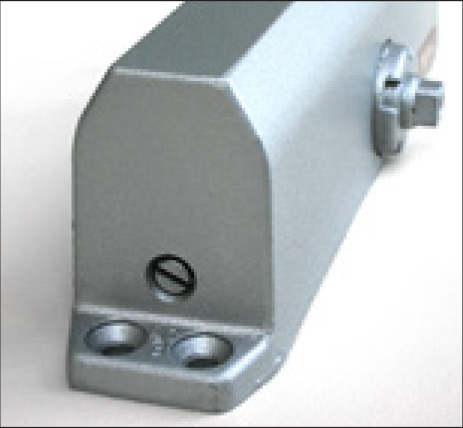

- Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation. (Three valves with optional back-check)
- Ranges of Sizes
- Standard: 1803, 1804, and 1805
- Back-Check: 1803-BC, 1804-BC, and 1805-BC
COMPLIANCE STANDARD
- Factory tested to meet or exceed ANSI 156.4 Grade 1
- Barrier Free operation to comply with Federal Accessibility Standards (ADA) complying with ANSI 117.1
OPTIONS AVAILABLE
- Slim or Full Plastic Cover

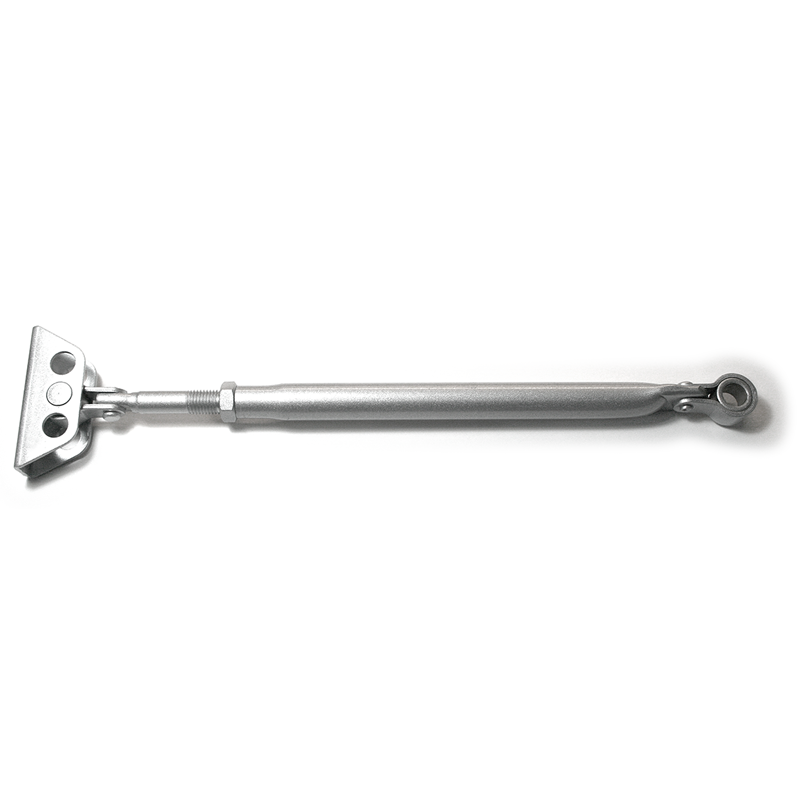

- Hold-Open Arm

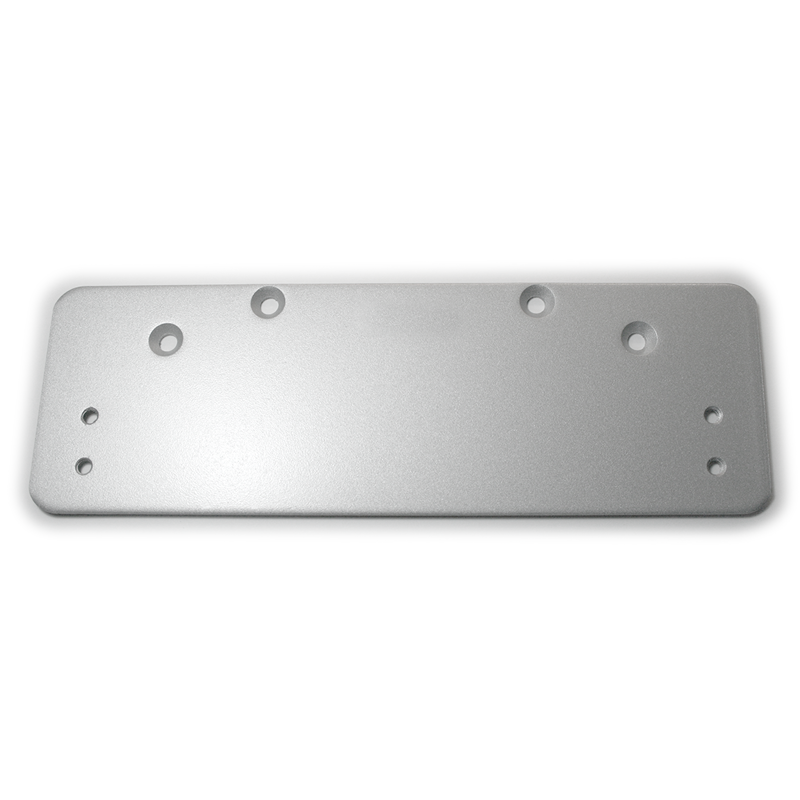

- Drop Plates
- Sex Nuts and Bolts
FINISHES
- AL – Aluminum
- DU – Storefront Bronze
10 YEAR WARRANTY
| Description | Dimensions |
|---|---|
| A. Length of Closer Body | 9-3/4” |
| B. Horizontal Mounting Holes | 9-1/16” |
| C. Vertical Mounting Holes | 3/4” |
| D. Closer Body Height | 1-31/32” |
| E. Projection from Door | 2-29/32” |
Standard
Top Jamb
Parallel Arm
| Regular & Top Jamb | Parallel Arm | Applicable Door Weight Lbs (Kg) | |||||
|---|---|---|---|---|---|---|---|
| Maximum Size of Door | |||||||
| Closer Size | Interior | Exterior Inswing | Exterior Outswing | Closer Size | Interior | Exterior | |
| 1 | 28” (0.71m) | 1 | 33-66 (15-30) | ||||
| 2 | 36” (0.91m) | 2 | 30” (0.76m) | 66-99 (30-45) | |||
| 3 | 42” (1.07m) | 30” (0.76m) | 36” (0.91m) | 3 | 36” (0.91m) | 30” (0.76m) | 99-143 (45-65) |
| 4 | 48” (1.22m) | 36” (0.91m) | 42” (1.07m) | 4 | 42” (1.07m) | 36” (0.91m) | 143-187 (65-85) |
| 5 | 54” (1.37m) | 42” (1.07m) | 48” (1.22m) | 5 | 48” (1.22m) | 42” (1.07m) | 178-264 (85-120) |
| 6 | 60” (1.52m) | 48” (1.22m) | 54” (1.37m) | 6 | 54” (1.37m) | 48” (1.22m) | 264-330 (120-150) |
