Electric Strikes15 Series
15 SERIES • ELECTRIC STRIKES

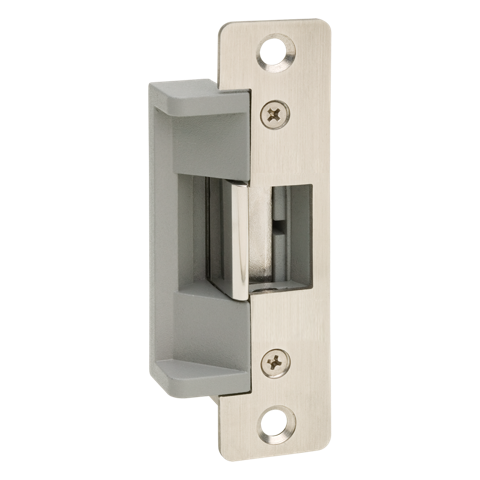

The IDC 15 Series electric strike is designed for use with cylindrical and mortise locksets. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.
Additional Resources
Description
15 SERIES • ELECTRIC STRIKES
The IDC 15 Series electric strike is designed for use with cylindrical and mortise locksets. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.
- For use with 5/8” latchbolt, or up to 3/4” latchbolt with 1/8” door gap
- Choice of failsafe or failsecure
- Non-handed
- All stainless steel parts with durable die case body for corrosion resistance’
- 630 Satin stainless steel face plate
- ANSI A156.31 compliant
- 15-4S24U Failsecure, 24VDC
- 15-4F24U Failsafe, 24VDC
- 15-4S12U Failsecure, 12VDC
- 15-4F12U Failsafe, 12VDC
Specifications
- Voltage :
- 240 mA @ 24VDC
- 200 mA @ 12VDC
- Dimensions:
- 1-1/4” W x 4-7/8” H x 1-3/8” D (31.8W x 124H x 34.9D mm)
